TK80 - Current measurement transformer 1500/5
- Regular price
- €39,69 €32,53 excl. VAT
- Regular price
-
- Sale price
- €39,69 €32,53 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty
|

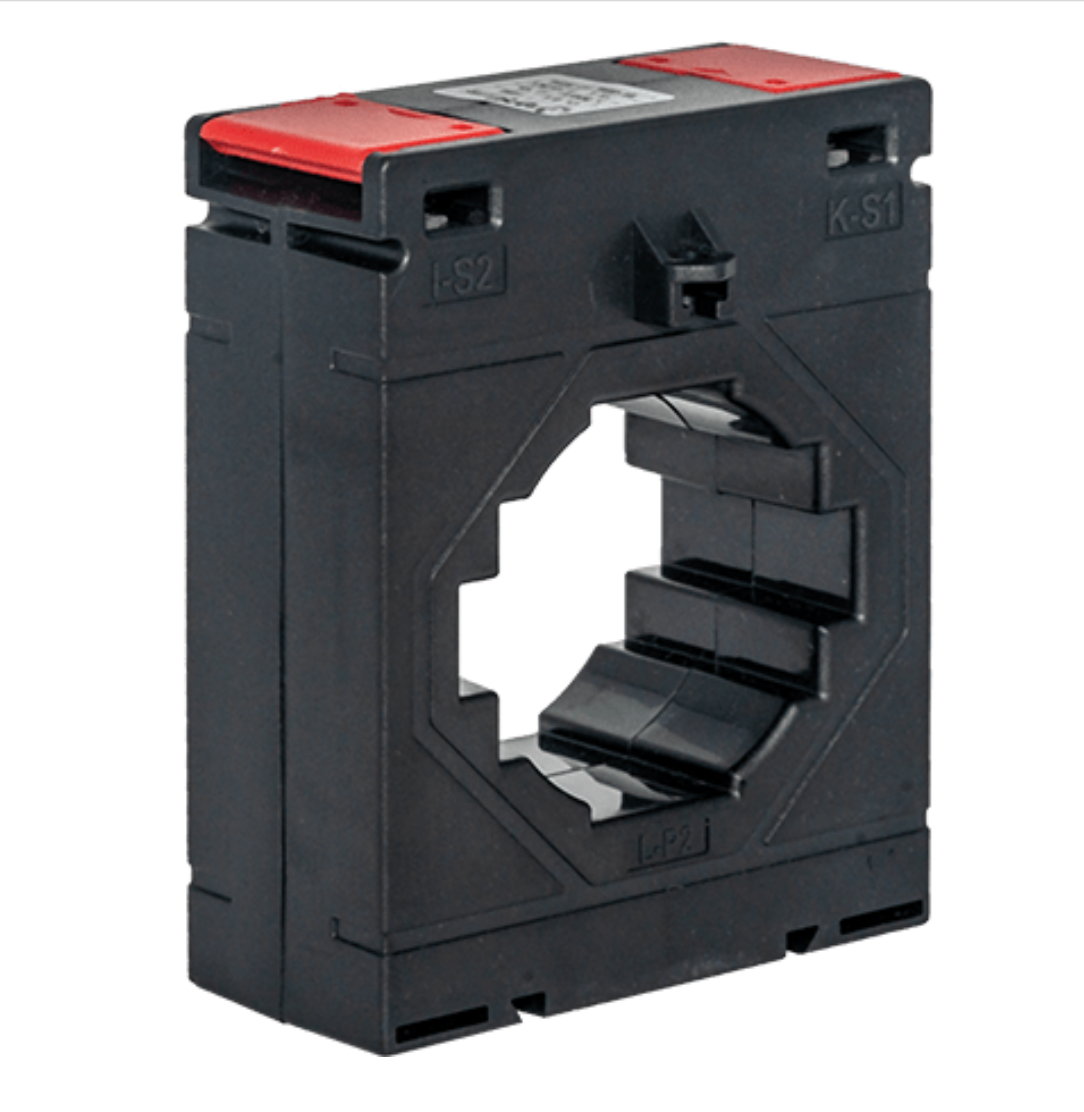

Current transformer 81x13, 1500/5A -0.5S - 20VA - 80mm, voltage
Voltage current transformers allow precise measurement and control of electrical parameters in AC systems. They convert high current values into lower, safer values for measuring equipment, enabling efficient monitoring and management of electrical systems. Technical specifications
Ratio: 1500/5A Load capacity: 20VA Accuracy class 0.5S Terminal block Non-removable cover; for high gauge conductors; made of brass for increased safety Non-flammable and self-extinguishing ABS housing Mounting KK0001 or KK0002 Primary winding 80 x 10 mm Round conductor Ø 65 mm T resistance to short-circuit current Ith = 60*In T resistance to constant current exposure Id = 1 * In Ambient temperature (operating hours) -25°C~+85°C Rated frequency 50 Hz ... 60 Hz Switching current limit FS 5 Test voltage 3 kV for 1 minute Maximum system voltage 0.72 kV Standards: IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN57414, BS3938, BS7626, EN 61869
Advantages of voltage current transformers: High accuracy: provide reliable measurements for precise control of electrical parameters. Wide range of rated currents: allows selecting the optimal model for specific needs. Different sizes: the various window sizes ensure installation flexibility and compatibility with different conductors. Reliability and durability: made with high-quality materials that guarantee long-lasting performance. |
The choice of voltage current transformers ensures stable operation of electrical systems and measurement accuracy, a key factor for efficient energy management.
Scarica su
Informazioni tecniche sui trasformatori di corrente (996 kB) - da inviare su richiesta
Online card payment: after completing your order, you will be redirected to the payment gateway, and payment confirmation will be sent to your email.
COD: you pay the amount due for the order to the transport company’s driver upon delivery.
By bank transfer – you will receive a pro forma invoice at your email address no later than the next business day. It will include the account number to enter when making the payment.
On invoice: this payment option is available to partners who have signed a framework agreement with our company.
If you wish to use either of the last two methods, call our manager, who will provide instructions on how to receive an invoice with or without VAT.
The electrical devices we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements.
We also offer free shipping on orders over €200. We have a flexible system of discounts and promotions. The technical knowledge and experience of our employees enable us to provide high-quality advice and, when necessary, offer alternatives to electrical products.
The electrical equipment we provide meets high quality standards, is covered by a 24-month warranty, and complies with all EU requirements.
In case of a complaint, the return of the goods is not charged.
