Mini PTC 15W heater for electrical panels, MPHT15, Plastim

Online payment by card – after completing your order, you will be redirected to the payment page and receive a payment confirmation via email.

Cash on delivery – payment, according to the terms of sale, is made to the courier of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day, containing the account number to use for payment.

On invoice with deferred payment – this payment method is available to partners who have signed a framework agreement with our company.

If you wish to use one of the latter two payment methods, please contact our account manager, who will provide you with instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In the event of a complaint, there are no costs for returning the goods.

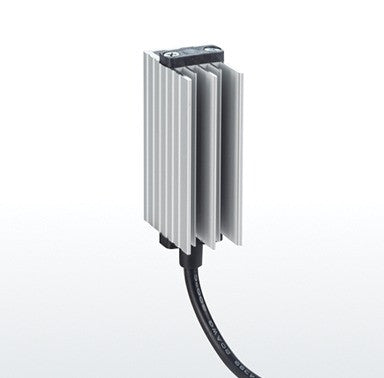

Mini electric heater (PTC Body heater, post-tension heater) for electrical panels with anodized aluminum heat sink and overcurrent protection, for DIN rail installation with 15 watts, 110-220 volts AC or DC, MPHT15, Plastim - product of Turkey.

• Heating power: 15W

• Operating voltage: 100-250 V AC/DC

• Maximum current: 2A

• Type of heating element: Self-regulating PTC resistor

• Overcurrent protection: electronic thermal overload relay

• Electrical connection: 30 cm cable, N-L-E

• IEC protection class: Class II

• Protection rating: IP20

• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: aluminum profile, anodized

• Mounting: 35 mm DIN rail

• Mounting position: Best efficiency in vertical position

• External dimensions: 60x50x27 mm

• Weight: 0.11 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals, and other electronic devices. In the past, incandescent lamps were used for these purposes, but it is clear that this method does not ensure compliance with modern and strict requirements for electrical and electronic equipment. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating but also ensure safety and durability.

All heaters are equipped with electronic protection against surface overheating, providing an additional guarantee of safe operation.

Due to the high requirements for cabinet heaters, Plastim paid the utmost attention to selecting component suppliers. For example, the supplier of PTC heaters is the same as Schneider Electric's.

This approach to supplier selection positively differentiates Plastim's high-quality heaters from low-cost Chinese counterparts.

To ensure automatic temperature maintenance with this heater, a simple bimetallic thermostat or a more complex temperature controller is required. Both devices can be purchased on our website.
