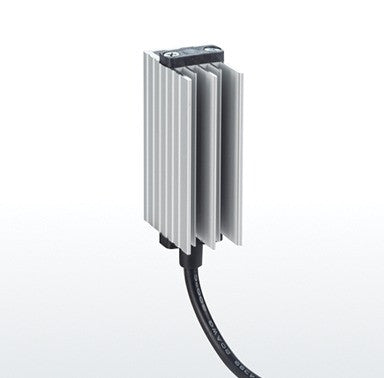

Mini heater for electrical panels PTC 25W, MPHT25, Plastim

Mini electric heater (PTC Body heater, post-tension heater) for electrical panels with anodized aluminum heat sink and overcurrent protection, for DIN rail mounting with 25 watts, 110-220 volts AC or DC, MPHT25, Plastim - made in Turkey.

• Heating power: 25W

• Operating voltage: 100-250 V AC/DC

• Maximum current: 2A

• Type of heating element: Self-regulating PTC resistor

• Overcurrent protection: electronic thermal overload relay

• Electrical connection: 30 cm cable, N-L-E

• IEC protection class: Class II

• Protection rating: IP20

• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: aluminum profile, anodized

• Mounting: 35 mm DIN rail

• Mounting position: Best efficiency in vertical position

• External dimensions: 70x50x27 mm

• Weight: 0.12 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals, and other electronic devices. In the past, incandescent lamps were used for these purposes, but it is clear that this method does not ensure compliance with modern and strict requirements for electrical and electronic equipment. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating but also ensure safety and operational durability.

All heaters are equipped with electronic protection against surface overheating, providing an additional guarantee of safe operation.

Due to the high requirements for cabinet heaters, Plastim paid the utmost attention to selecting component suppliers. For example, the supplier of PTC heaters is the same as Schneider Electric's.

This approach to supplier selection positively differentiates Plastim's high-quality heaters from low-cost Chinese counterparts.

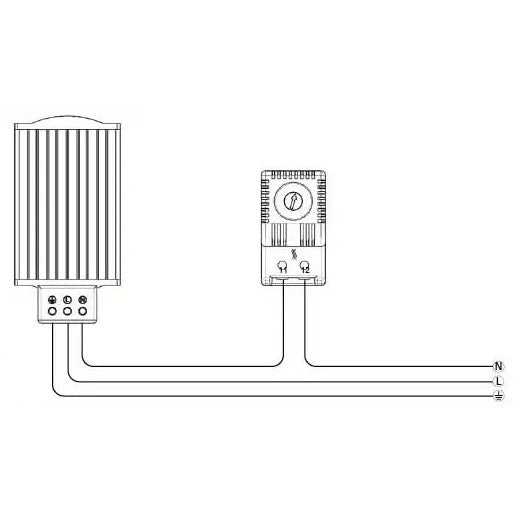

To ensure automatic temperature maintenance with this heater, a simple bimetallic thermostat or a more complex temperature controller is required. Both devices can be purchased on our website.
