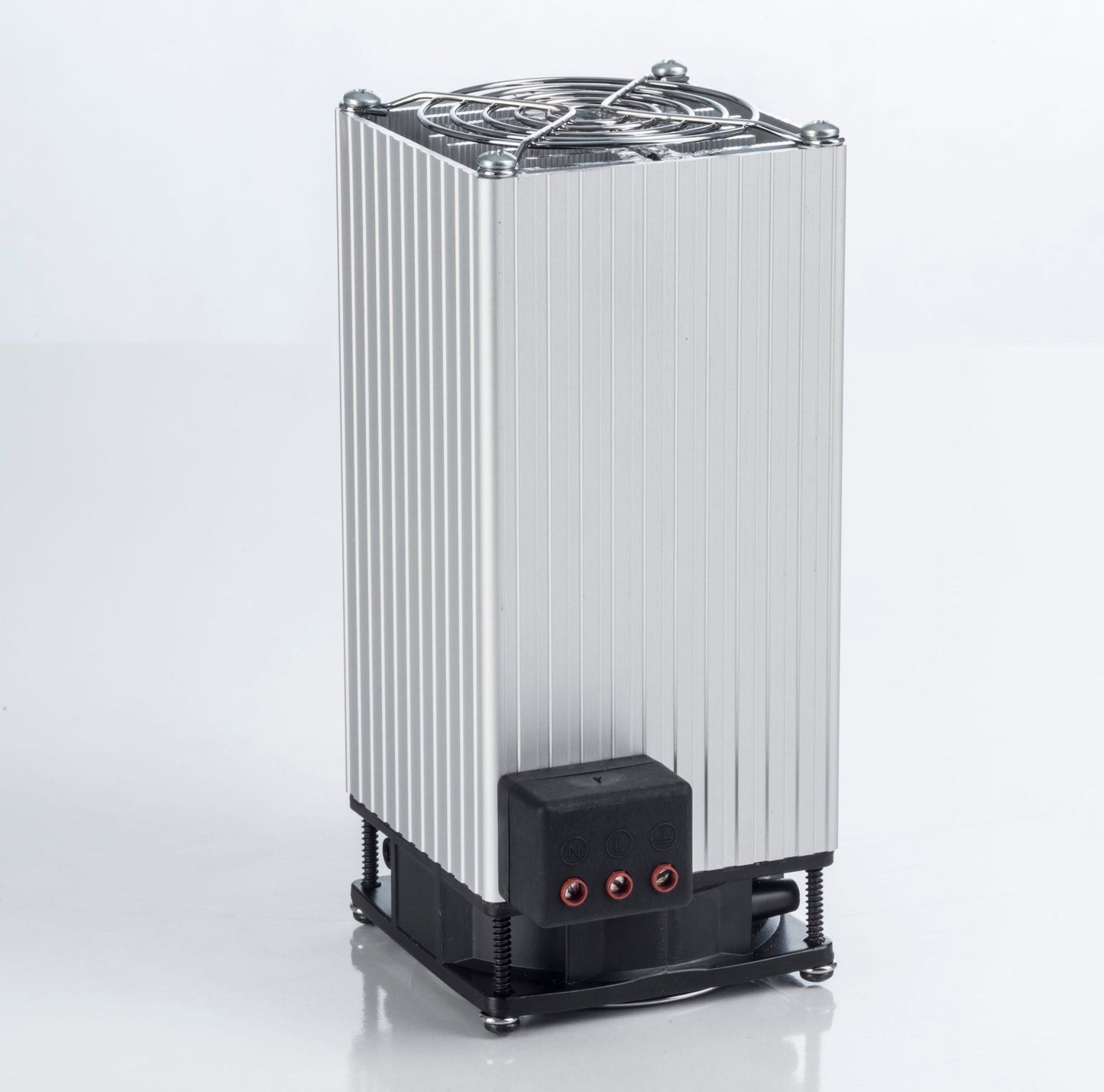

Resistive heater for electrical panels with fan 500W, PFHT500, PLASTIM

Online payment by card – after completing your order, you will be redirected to the payment page and receive a payment confirmation via email.

Cash on delivery – payment, according to the terms of sale, is made to the courier of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day, containing the account number to use for payment.

On invoice with deferred payment – this payment method is available to partners who have signed a framework agreement with our company.

If you wish to use one of the latter two payment methods, please contact our account manager, who will provide you with instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In the event of a complaint, there are no costs for returning the goods.

Electric heater for electrical panels with fan, with anodized aluminum heat sink and overcurrent protection, for DIN rail installation with a power of 250 watts, 220/230 volts AC, PFHT250, Plastim - made in Turkey.

• Heating power: 500W

• Operating voltage: 220/230 V AC, 50/60 Hz

• Maximum current: 2.4 A

• Type of resistance.

• Axial fan: 80x80x25mm 35m3/h

• Overcurrent protection: electronic thermal overload relay

• Electrical connection: 3-pole N-L-E terminal

• IEC protection class: Class II

• Protection rating: IP20

• Operating temperature: -25 / +70 °C

• Storage temperature: -25 / +70 °C

• Heat sink: aluminum profile, anodized

• Mounting: 35 mm DIN rail

• Mounting position: Best efficiency in vertical position

• External dimensions: 182x80x110 mm

• Weight: 1.2 kg

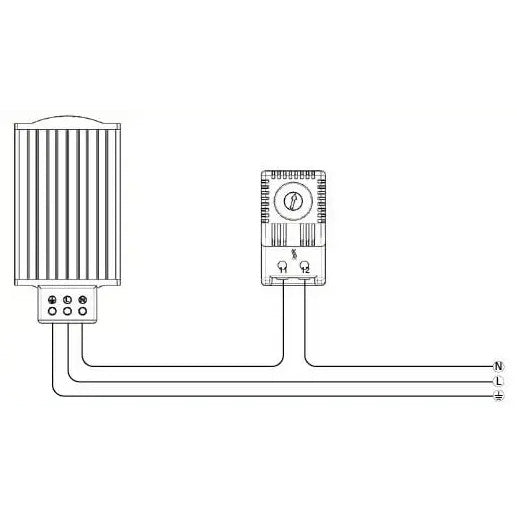

To ensure automatic temperature maintenance with this heater, a simple bimetallic thermostat or a more complex temperature controller is required. Both devices can be purchased on our website.
