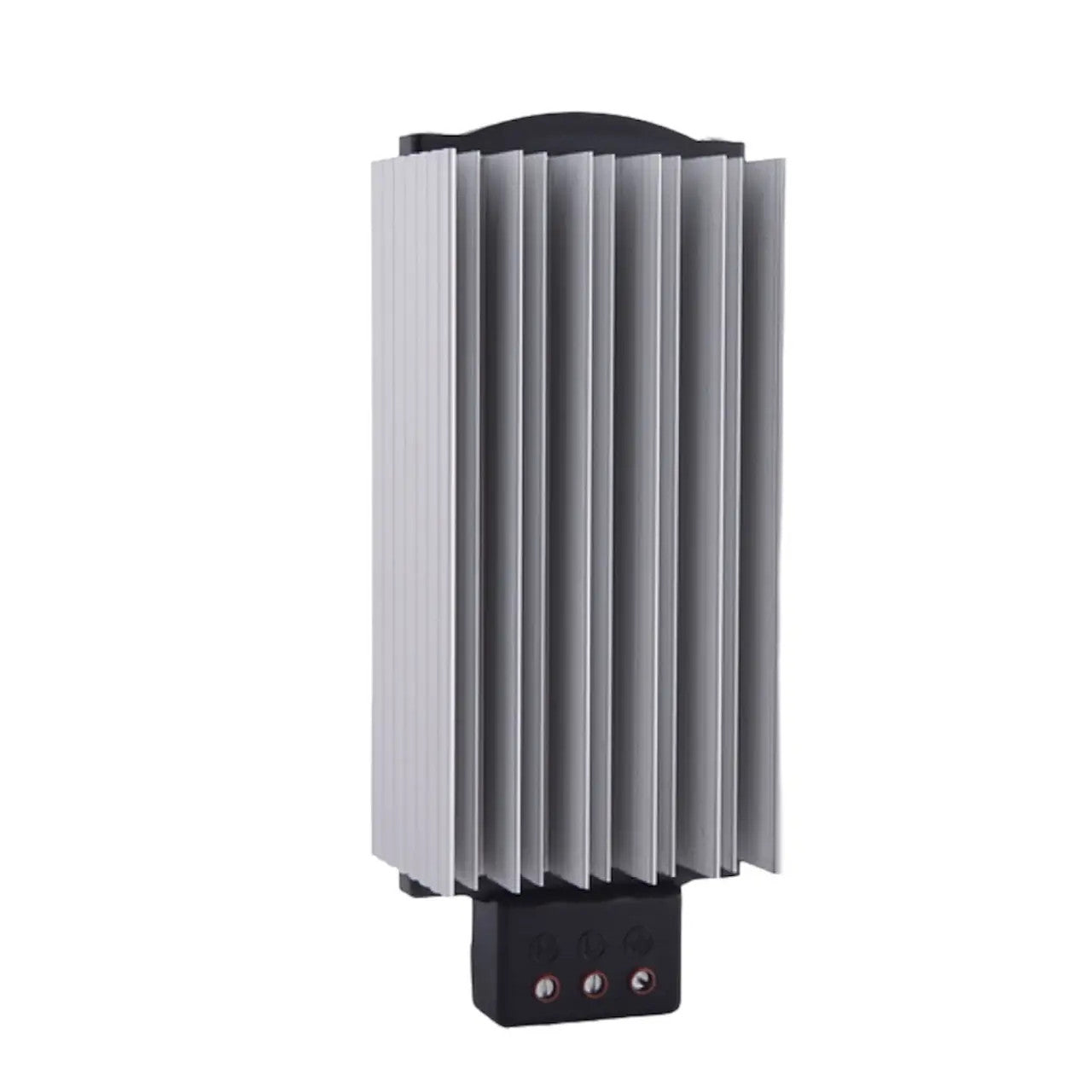

PTC Electric Panel Heater 75W, PHT075, Plastim

Electric heater (PTC Body Heater, post-test heater) for electrical panels with anodized aluminum heat sink and overcurrent protection, for DIN rail mounting with 75 watts, 110-220 volts AC or DC, PHT075, Plastim - made in Turkey.

• Heating power: 75W
• Operating voltage: 100-250 V AC/DC
• Maximum current: 4A
• Type of heating element: self-regulating PTC resistor
• Overcurrent protection: electronic thermal overload relay
• Electrical connection: 3-pole N-L-E terminal
• IEC protection class: Class II
• Protection rating: IP20
• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: aluminum profile, anodized

• Mounting: 35 mm DIN rail

• Mounting position: Best efficiency in vertical position

• External dimensions: 178x70x59 mm

• Weight: 0.54 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals, and other electronic devices. In the past, incandescent lamps were used for these purposes, but it is clear that this method does not ensure compliance with modern and strict requirements for electrical and electronic equipment. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating but also ensure safety and durability.

All heaters are equipped with electronic protection against surface overheating, providing an additional guarantee of safe operation.

Due to the high requirements of cabinet heaters, Plastim has paid the utmost attention to the selection of component suppliers. For example, the supplier of PTC heaters is the same as Schneider Electric, and the terminal block for the electrical connection of all components is produced by the Italian company KORNER on special order. The plastic from which this block is made has a very important property: when heated, it not only retains its shape and does not deform, but also does not emit odors and therefore does not release harmful carcinogenic substances into the atmosphere. You will agree that this approach to supplier selection favorably distinguishes high-quality Plastim heaters from low-cost Chinese counterparts.

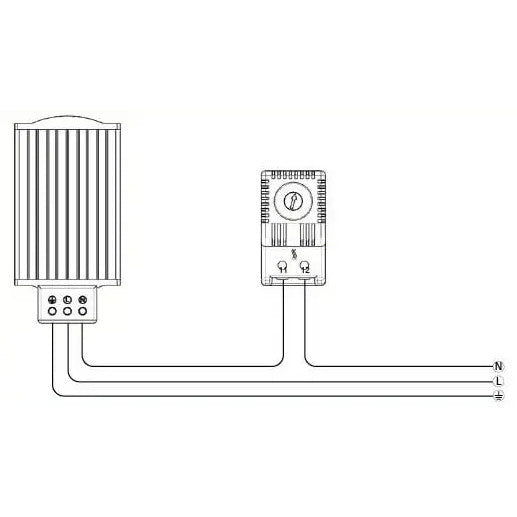

To ensure automatic temperature maintenance with this heater, a simple bimetallic thermostat or a more complex temperature controller is required. Both devices can be purchased on our website
