Fan with filter, 115 (130) m3/h, 260x260, 230V 50/60Hz IP54 PTF2500 Plastim

Barcode: PTF2500

Regular price: €64,00 €52,46 excl. VAT
Regular price
Sale price: €64,00 €52,46 excl. VAT
Unit price: per

42 in stock

All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.

Product variants

Description
Instructions
Payment methods
Warranty

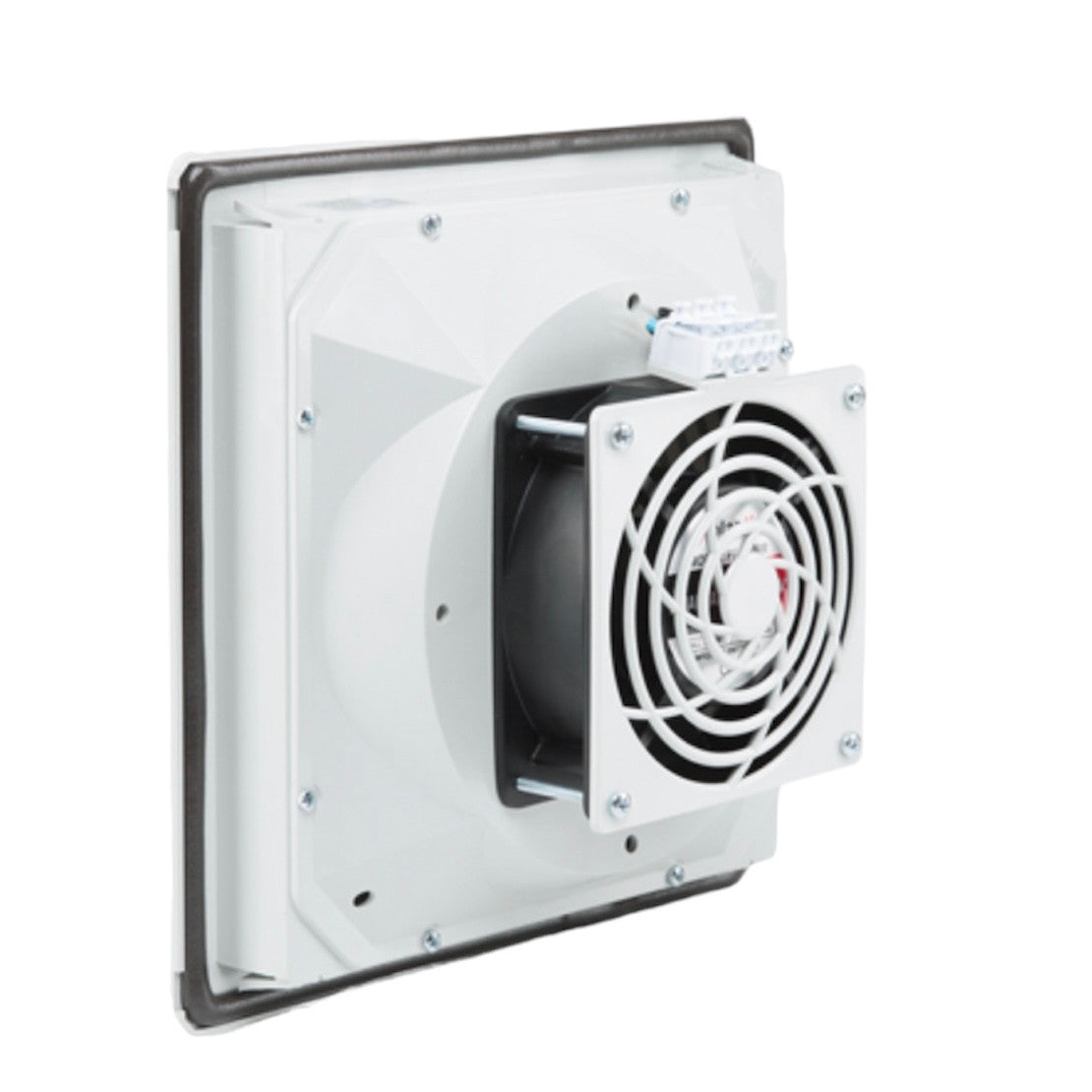

Ventilation grille with fan and filter, size 260x260 mm, for installation in electrical cabinets, automation panels, ATMs or gaming terminals. PTF2500, manufacturer Plastim (Türkiye)

Used for external air intake of electrical cabinets, ATMs, payment terminals, gaming machines, automation panels, control panels, service stations. Usually installed in the side walls of enclosures to maintain IP protection.

The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.

External dimensions: 260x260x103 mm
Installation dimensions: 223x223 mm
Airflow: 115 (130) m3/h
Noise level: 42 (46) dB(A)
Bearing: Ball bearing
Operating voltage: 220-230VAC, 50/60Hz
Current consumption: 0.14 (0.13) A
Rated power: 26 (23) W
Electrical connection: 3-pole terminal
Flow direction: From outside to inside (modifiable)
Operating temperature: -10/+70 °C
Protection rating: IP54
Plastic material: ABS UL94 V0 flame retardant
Gasket: polyurethane gasket
Color: RAL 7035 (RAL 7032 on request)
Weight: 1.18 kg
Installation: quick clip-on

To ensure automatic air exchange and temperature maintenance with this fan, a simple bimetallic thermostat or a more complex temperature controller is required; both devices can be purchased on our website.
