Fan with filter, 240 (270) m3/h, 260x260, 230V 50/60Hz IP54 PTF3500 Plastim

Online payment by card – after completing your order, you will be redirected to the payment page and receive a payment confirmation via email.

Cash on delivery – payment, according to the terms of sale, is made to the courier of the transport company.

Bank transfer – You will receive a proforma invoice by email no later than the next business day, containing the account number to use for payment.

On invoice with deferred payment – this payment method is available to partners who have signed a framework agreement with our company.

If you wish to use one of the latter two payment methods, please contact our account manager, who will provide you with instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In the event of a complaint, there are no costs for returning the goods.

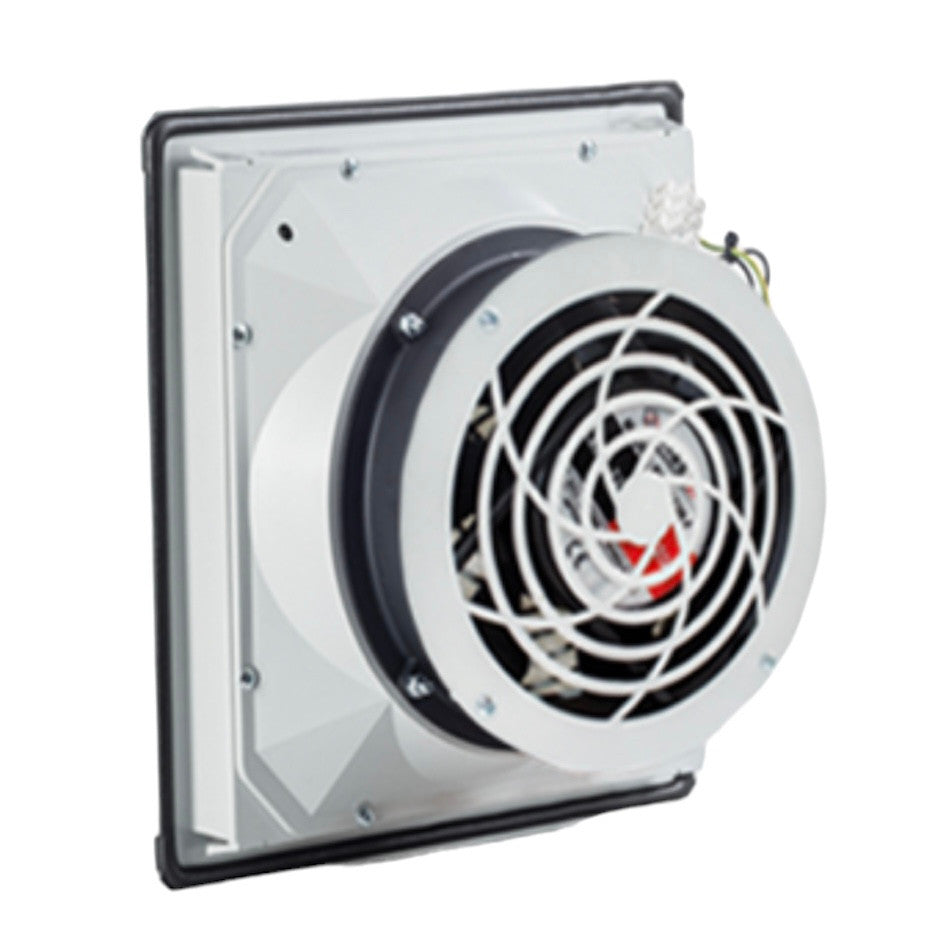

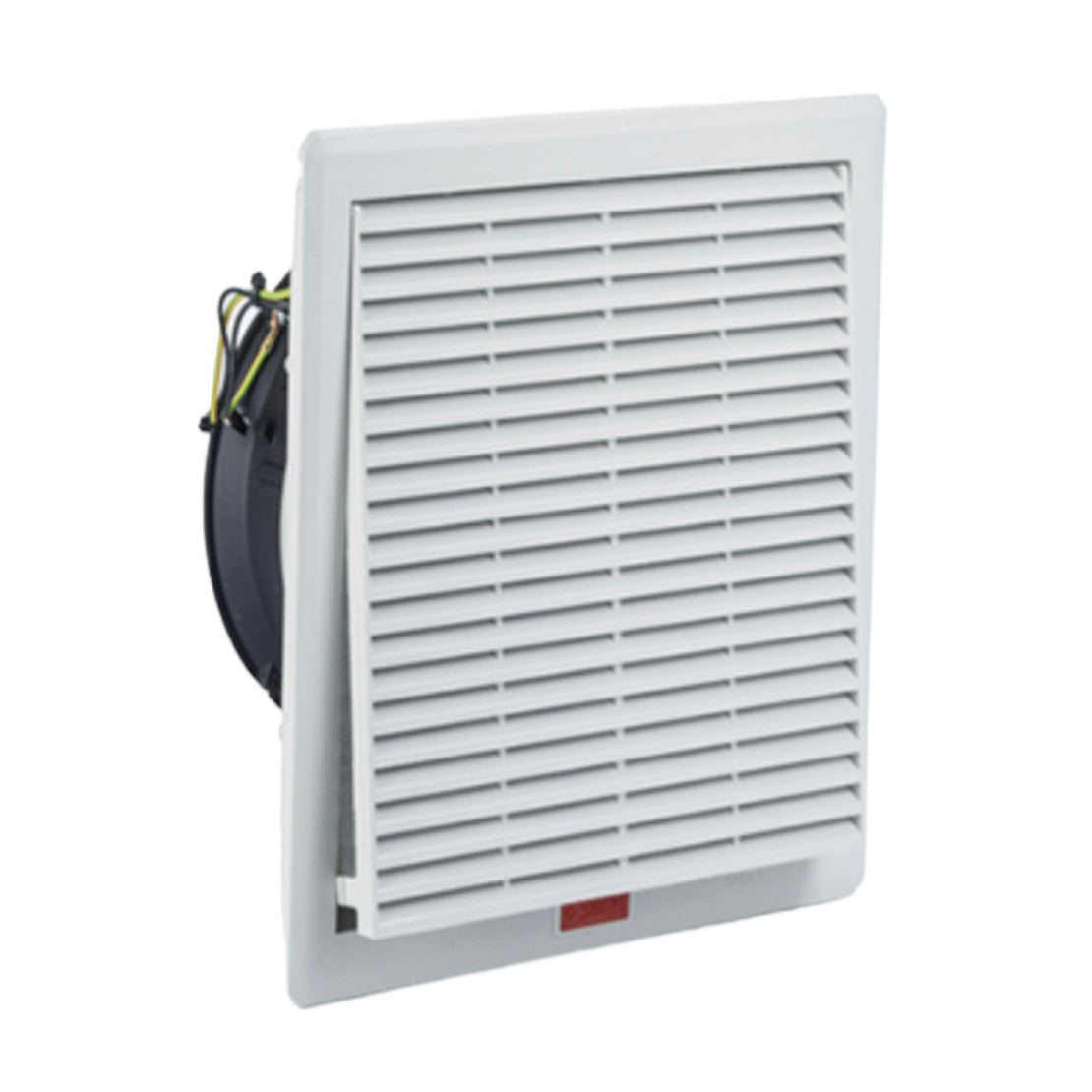

Ventilation grille with fan and filter, size 260x260 mm, for installation in electrical cabinets, automation panels, ATMs or gaming terminals. PTF3500, manufacturer Plastim (Türkiye)

Used for external air intake of electrical cabinets, ATMs, payment terminals, gaming machines, automation panels, control panels, service stations. They are usually installed in the side walls of the boxes to maintain the IP rating.

• External dimensions: 260x260x103 mm
• Installation dimensions: 223x223 mm
• Airflow: 240 (270) m3/h
• Noise level: 52 (53) dB(A)
• Bearing: Ball bearing
• Operating voltage: 220-230VAC, 50/60Hz
• Current consumption: 0.23 (0.22) A
• Rated power: 37 (35) W
• Electrical connection: 3-pole terminal
• Flow direction: From outside to inside (modifiable)
• Operating temperature: -10/+70 °C
• Protection rating: IP54
• Plastic material: ABS UL94 V0 flame retardant
• Gasket: polyurethane gasket
• Color: RAL 7035 (RAL 7032 on request)
• Weight: 1.6 kg
• Installation: quick clip-on

To ensure automatic air exchange and temperature maintenance with this fan, a simple bimetallic thermostat or a more complex temperature controller is required; both devices can be purchased on our website.

The ventilation grille is equipped with a replaceable filter. The filter cartridge can be easily replaced or cleaned and reused.
