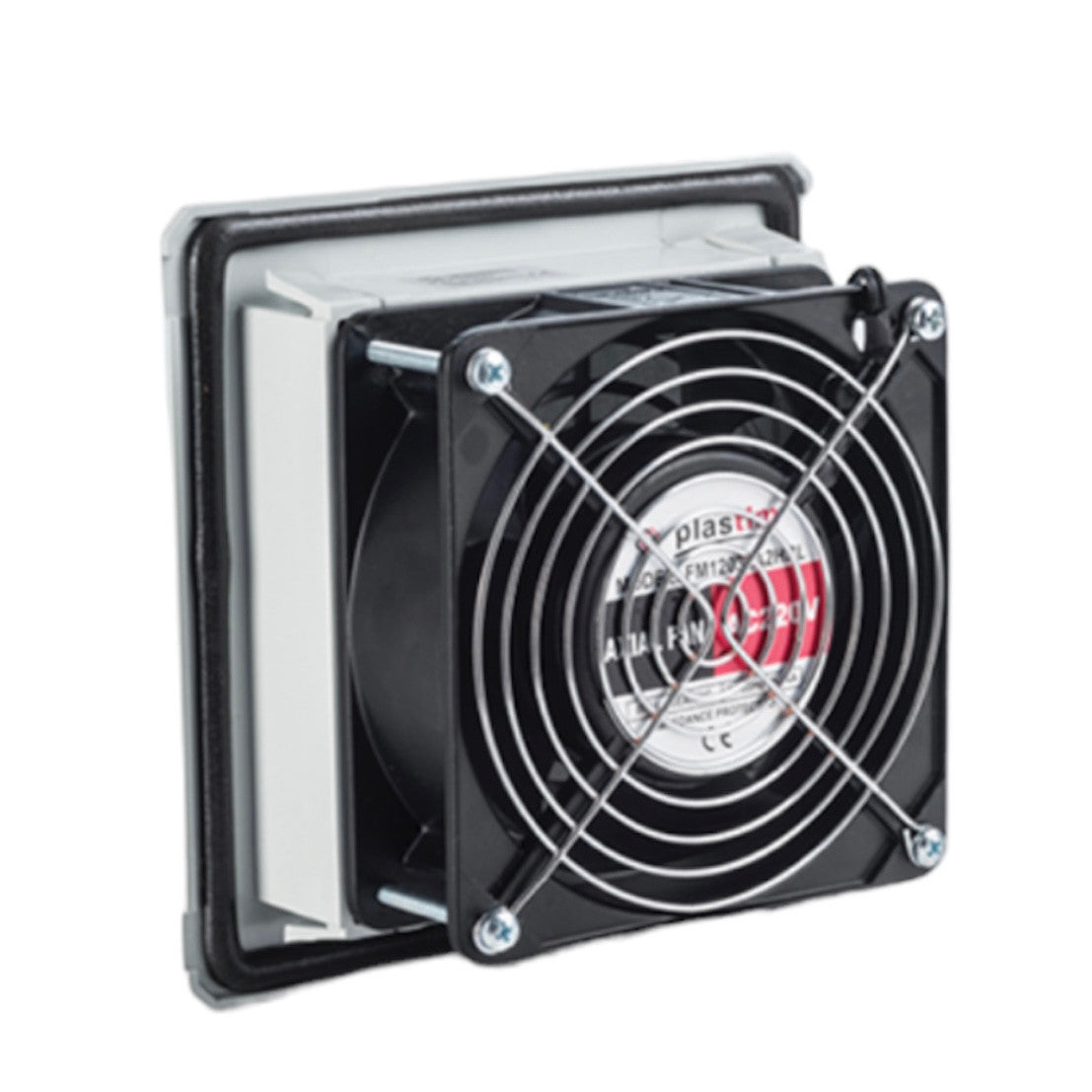

Fan with filter, 30 (41) m3/h, 120x120, 230V 50/60Hz, IP54 PTF1000 Plastim

Barcode: PTF1000

Regular price: €24,40 €20,00 excl. VAT
Regular price
Sale price: €24,40 €20,00 excl. VAT
Unit price: per

202 in stock

All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.

Product variants

Description
Instructions
Payment methods
Warranty

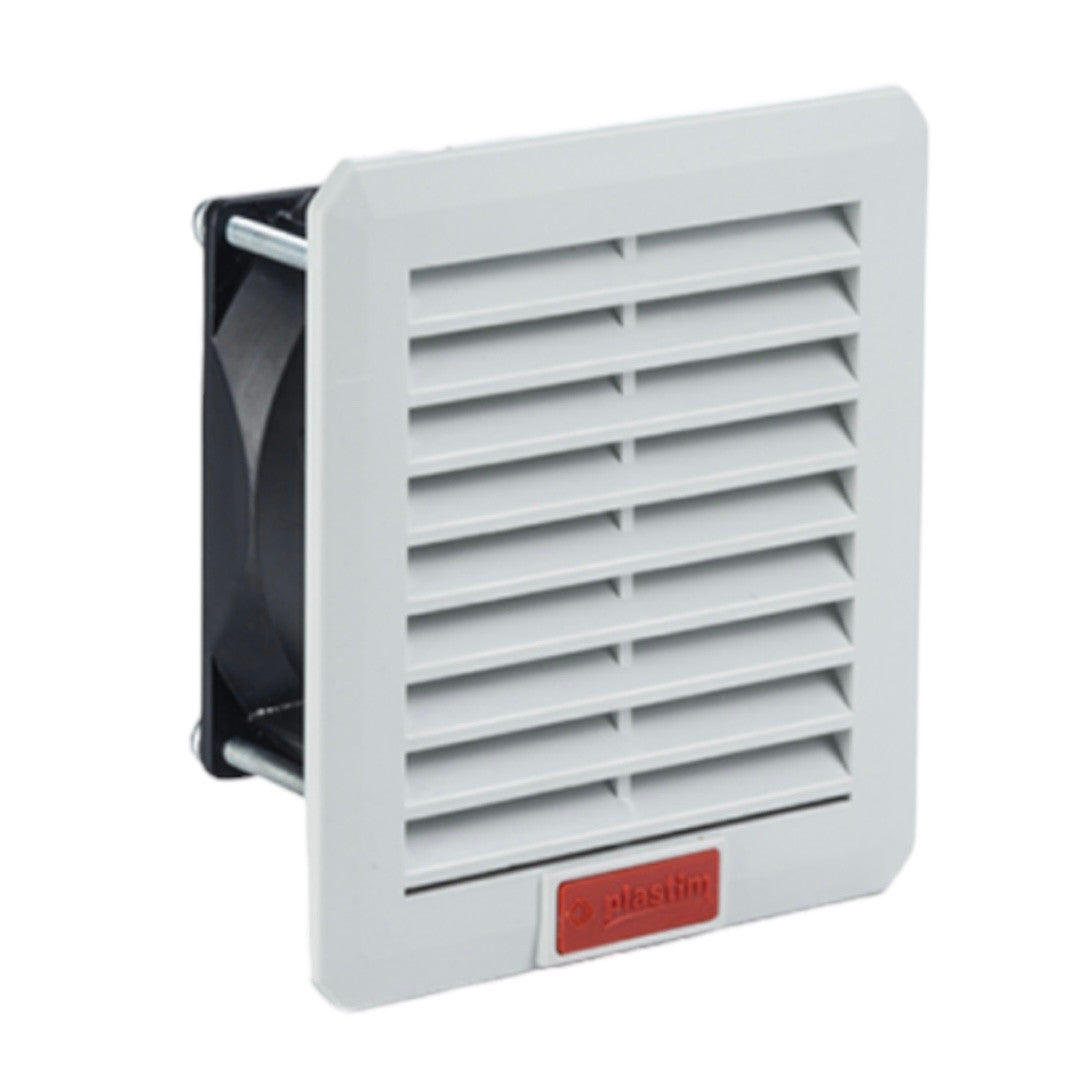

Ventilation grille with fan and filter, size 120x120 mm, for installation in electrical cabinets, automation panels, ATMs or gaming terminals. PTF1000, manufacturer Plastim (Türkiye)

Used for drawing external air into electrical cabinets, ATMs, payment terminals, gaming machines, automation panels, control panels, service stations. Usually installed in the side walls of enclosures to maintain IP protection.

External dimensions: 120x120x58.5 mm
Installation dimensions: 92x92 mm
Airflow: 30 (41) m3/h
Noise level: 28 (31) dB(A)
Bearing: Sleeve bearing
Operating voltage: 220-230VAC, 50/60Hz
Current consumption: 0.08 (0.07) A
Rated power: 14 (13) W
Electrical connection: conductor wire
Flow direction: From outside to inside (modifiable)
Operating temperature: -10/+70 °C
Protection rating: IP54
Plastic material: ABS UL94 V0 flame retardant
Gasket: self-adhesive
Color: RAL 7035 (RAL 7032 on request)
Weight: 0.4 kg
Installation: quick clip-on

To ensure automatic air exchange and temperature maintenance with this fan, a simple bimetallic thermostat or a more complex temperature controller is required; both devices can be purchased on our website.

The ventilation grille is equipped with a replaceable filter. The filter cartridge can be easily replaced or cleaned and reused.

Manual

https://files.principalelektrik.org/Filter%20FANS%2030m3%20%28%20SKU%20PFI1000%2C%20SKU%20PFI1500%2C%20SKU%20PFI2000%2C%20SKU%20PFI2500%2C%20SKU%20PFI3000%2C%20SKU%20PTF1000%2C%20SKU%20PTF1000T%2C%20SKU%20PTF1500%2C%20SKU%20PTF1500T%2C%20SKU%20PTF2500%2C%20SKU%20PTF2000%2C%20SKU%20PTF3000%2C%20SKU%20PTF3500%2C%20SKU%20PTF4500%2C%20SKU%20PTF5000.pdf

Online card payment: after completing your order, you will be redirected to the payment gateway, and payment confirmation will be sent to your email.

COD: you pay the amount due for the order to the transport company’s driver upon delivery.

By bank transfer – you will receive a pro forma invoice at your email address no later than the next business day. It will include the account number to enter when making the payment.

On invoice: this payment option is available to partners who have signed a framework agreement with our company.

If you wish to use either of the last two methods, call our manager, who will provide instructions on how to receive an invoice with or without VAT.

The electrical devices we supply meet high quality standards, come with a 24-month warranty, and comply with all EU requirements.

We also offer free shipping on orders over €200. We have a flexible system of discounts and promotions. The technical knowledge and experience of our employees enable us to provide high-quality advice and, when necessary, offer alternatives to electrical products.

The electrical equipment we provide meets high quality standards, is covered by a 24-month warranty, and complies with all EU requirements.

In case of a complaint, the return of the goods is not charged.
