Fan with filter + clip, 100 (140) m3/h 160x160, 230V 50/60Hz IP54 PTF1500T Plastim
- Regular price
- €40,41 €33,12 excl. VAT
- Regular price
-
- Sale price
- €40,41 €33,12 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Frequently bought together
– Bimetallic thermostat NO switching, adjustment range 0-60°C, PTVT
- Regular price
- €8,41 €6,89 excl. VAT
- Regular price
-
- Sale price
- €8,41 €6,89 excl. VAT
- Unit price
- per
– Filter grille PFI1500 with filter, 160x160, Plastim
- Regular price
- €8,41 €6,89 excl. VAT
- Regular price
-
- Sale price
- €8,41 €6,89 excl. VAT
- Unit price
- per
– PTHVT Double/double bimetallic thermostat with NC+NO switching, 0-60°C range Plastim
- Regular price
- €14,44 €11,84 excl. VAT
- Regular price
-
- Sale price
- €14,44 €11,84 excl. VAT
- Unit price
- per
– Filter cartridge / Textile filter insert, PFM1500, Plastim
- Regular price
- €1,44 €1,18 excl. VAT
- Regular price
-
- Sale price
- €1,44 €1,18 excl. VAT
- Unit price
- per
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty

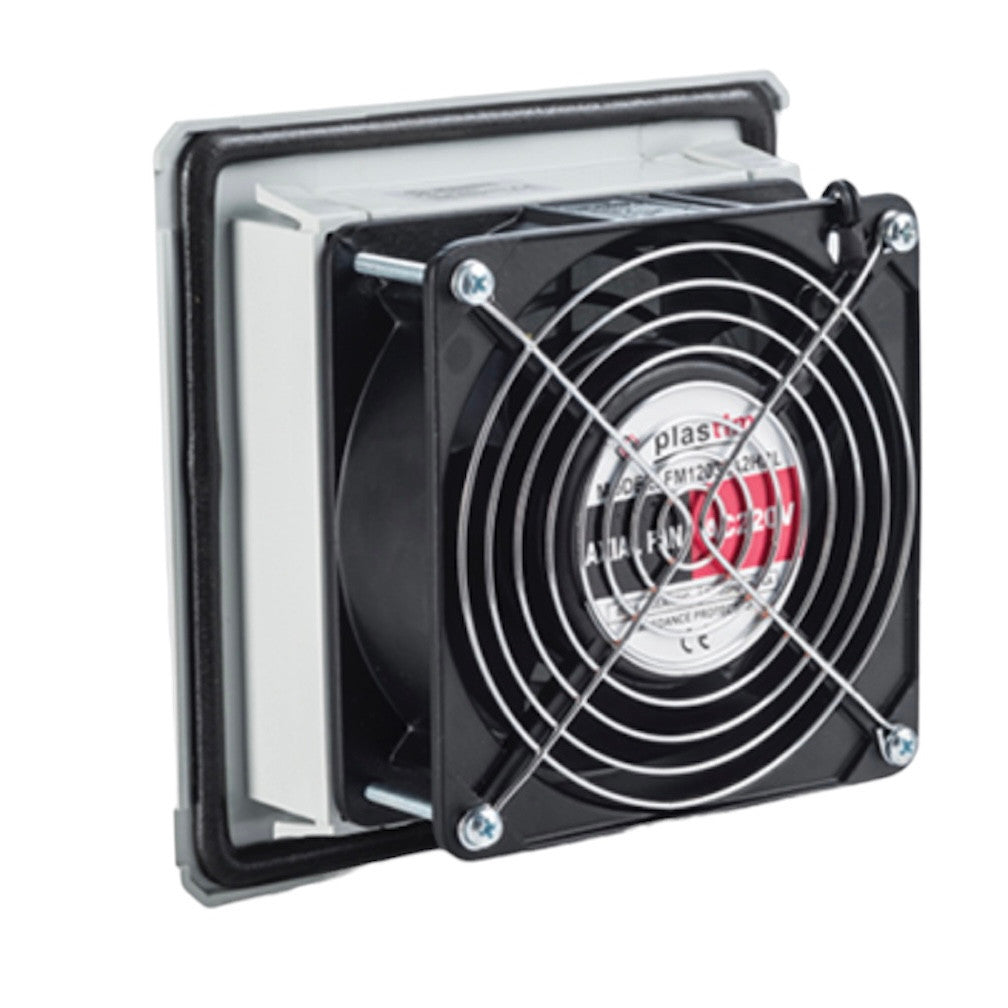

Ventilation grille with fan and filter, size 160x160 mm, for installation in electrical panels, automation panels, ATMs or gaming terminals. PTF1500T, manufacturer Plastim (Türkiye)
Used for external air suction in electrical panels, ATMs, payment terminals, gaming machines, automation panels, control panels, service stations. Usually installed in the side walls of boxes to maintain the IP rating.
- External dimensions: 160x160x69 mm
- Installation dimensions: 125x125 mm
- Capacity: 100 (140) m3/h
- Noise level: 42 (46) dB(A)
- Bearing: Ball bearing
- Operating voltage: 220-230VAC, 50/60Hz
- Current consumption: 0.14 (0.13) A
- Rated power: 26 (23) W
- Electrical connection: 3-pole terminal 2.5 mm2
- Flow direction: From outside to inside (modifiable)
- Operating temperature: -10/+70 °C
- Protection rating: IP54
- Plastic material: ABS UL94 V0 flame retardant
- Gasket: polyurethane gasket
- Color: RAL 7035 (RAL 7032 on request)
- Weight: 0.68 kg
- Installation: quick clip-on
To ensure automatic air exchange and temperature maintenance with this fan, a simple bimetallic thermostat or a more complex temperature controller is required; both devices can be purchased on our website.
