Microprocessor PID step/profile temperature controller

PID temperature controller, for panel mounting and on machine/control panel, relay outputs, measurement range -100°C ... +1750°C, resolution/step 0.1ºC, 20 temperature/heating stages (product made in Turkey, TENSE)

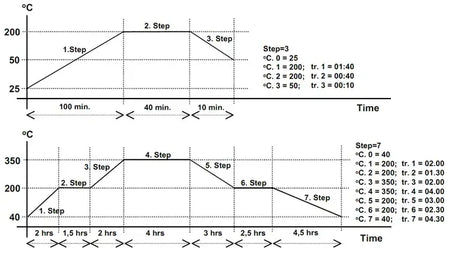

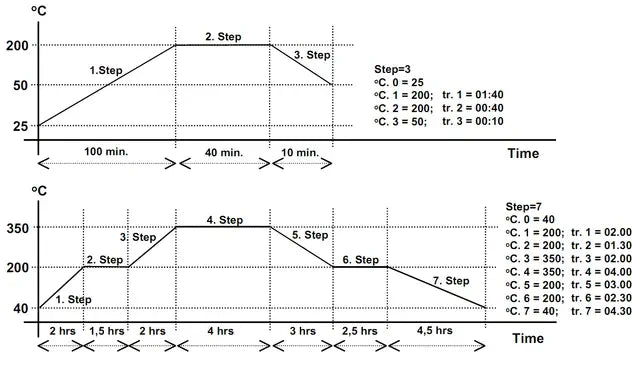

As can be seen from the previous graphs, unlike cheap analogs, the TENSE thermostat allows setting temperature limit points and the time required for the temperature to reach the set points. This greatly simplifies the programming process. Additionally, the PID mode allows maintaining the system temperature as close as possible to the set points.

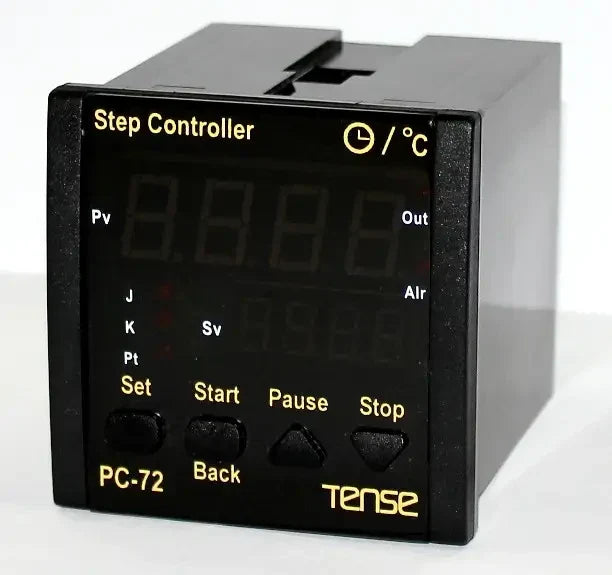

An important difference from competitors is also the simultaneous display of the current temperature, set point temperature, setting step, and time. It is very convenient to have the START/STOP/PAUSE/SET control buttons on the front panel: this ensures quick and efficient process control.

Temperature control is done via on/off or PID control. The controller offers self-optimization that prevents process values from being oversized.

• Automatic PID parameter adjustment

• Setting up to 20 temperature/heating stages

• Each phase is programmed for a maximum of 18 hours of operation

• Sensor type: T/C (J,K,T,S,R), Pt100
• Selectable control type: P, PI, PD, PID, or ON-OFF

• Automatic elimination of "overshoot" in PID mode

• Anti-windup

• Power-on delay for OUT in cooling mode

• Password protection

• EEPROM memory for saving settings

• Relay outputs OUT (NO+NC) 250VAC, 2A

The measurement range depends on the sensor and can be set via the thermostat buttons.

Don't forget to order our temperature sensors - type J Fe-Const thermocouple (metric 6/8) with temperature measurement range: -100 °C - +600 °C. They can have a cable length of 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m, and 5 m.
