SNT-MS725, SNT-MS715 indicator with buzzer, ø70mm, connecting nut
Failed to load pickup availability
Online payment by card – after completing your order, you will be redirected to the payment page and receive a payment confirmation via email.
Cash on delivery – payment, according to the terms of sale, is made to the courier of the transport company.
Bank transfer – You will receive a proforma invoice by email no later than the next business day, containing the account number to use for payment.
On invoice with deferred payment – this payment method is available to partners who have signed a framework agreement with our company.
If you wish to use one of the latter two payment methods, please contact our account manager, who will provide you with instructions on how to receive an invoice with or without VAT.
The electrical devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements. In the event of a complaint, there are no costs for returning the goods.

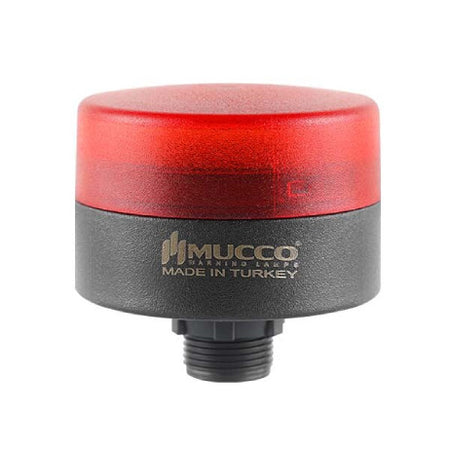

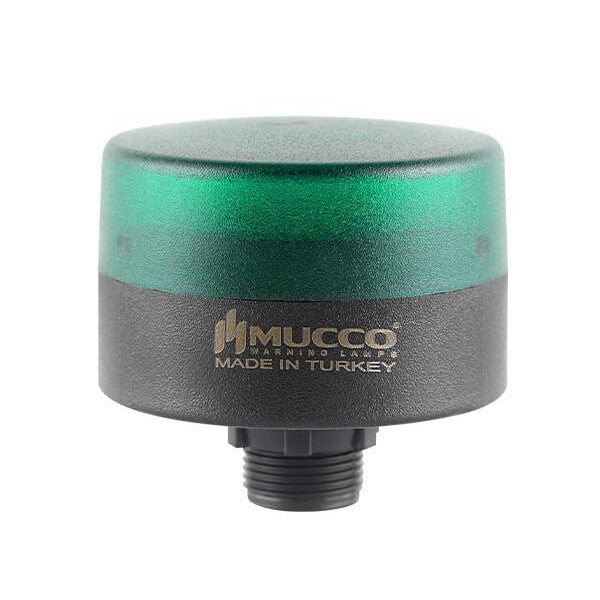

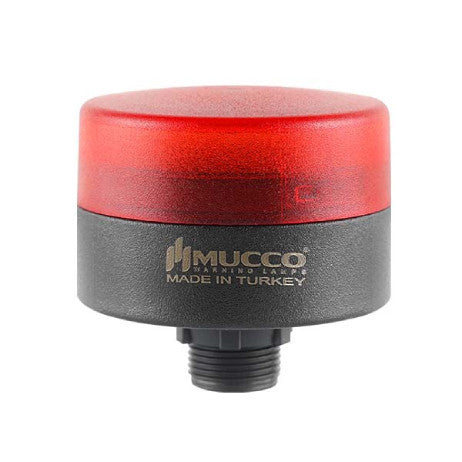

Series 70 SNT-MS725, SNT-MS715 acoustic signaler with buzzer, ø70mm, connection nut, manufacturer MUCCO (Turkey)
| Category | Acoustic signaler | |
| Rated voltage, current consumption | 24V/DC (without buzzer) | 110mA ±10% |
| 24V/DC (with buzzer) | 150mA ±10% | |
| 40~260V AC/DC (without buzzer) | 78mA ±10% 50-60 Hz | |
| 40~260V AC/DC (with buzzer) | 95mA ±10% 50-60 Hz | |
| Material | ABS (body) + polycarbonate (cover) | |

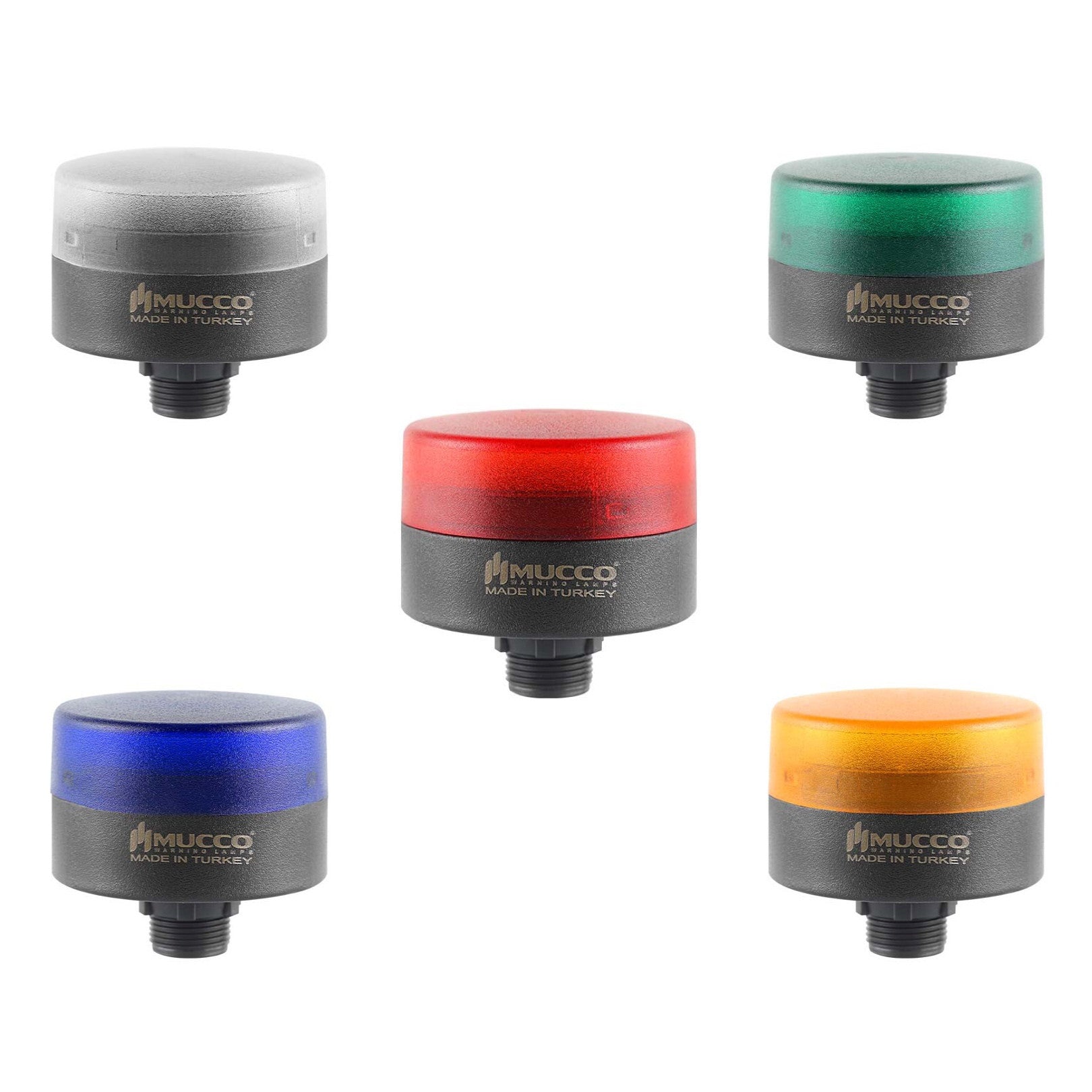

| Lid color | Red, yellow, green, blue, white | |

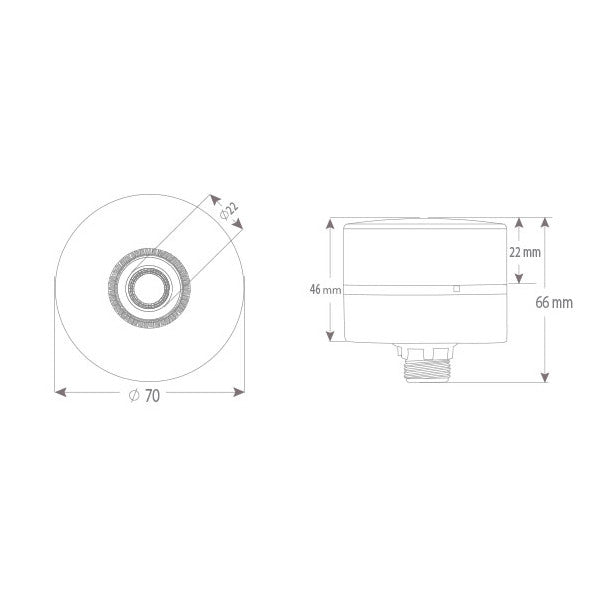

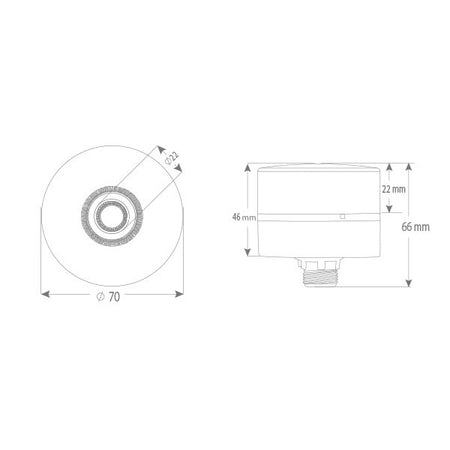

| Cover diameter | ø70 mm (M22 nut - end cap) | |
| Light source | SMD LED | |
| Type of optical signal | steady light, flashing | |
| Input response | On/Off: max. 10 ms | |
| Type of acoustic signal | 1 tone (wired control) | |
| Alarm | 94 ~ 100 dB at 1 m (3.3 ft) | |
| Connection | Flush | |
| Mounting type | Surface, wall | |
| Operating temperature | From -20°C to +50°C (from -4°F to +122°F) | |
| Expected lifetime | Minimum 50,000 hours | |
| Protection rating | IP65 | |
| Protection | Resistance to water, dust, heat, and UV rays | |
| Certificates and quality tests | ISO-9001, CE, RoSH2 and EAC |
